Description
What the TX-RZ50 Is

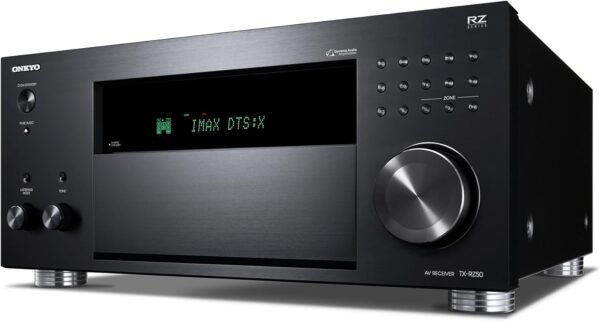

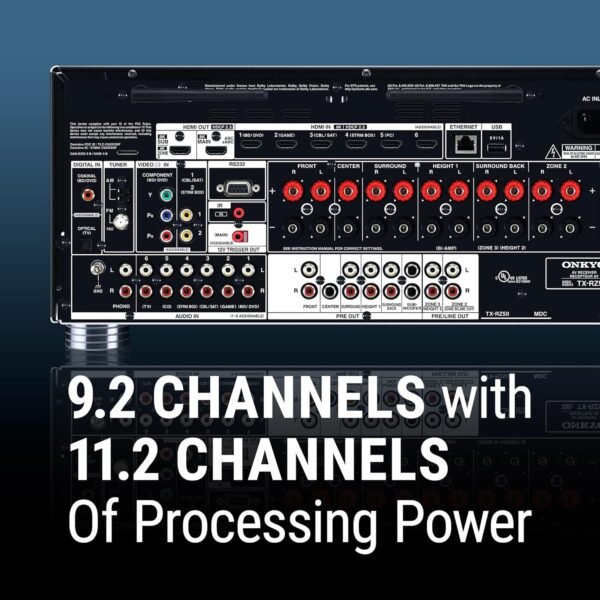

The Onkyo TX-RZ50 is a 9.2 channel AV receiver rated at 120 watts per channel, with processing for up to 11.2 channels and pre outs that support a 7.2.4 speaker layout. That combination of numbers describes its position in the market: nine channels of built in amplification with the processing headroom to add external amplification for two more, which is enough to run a full Dolby Atmos system with four height speakers if a separate power amplifier is added for the last pair.
It is a component for a dedicated room rather than a living room convenience purchase. At 36.2 pounds and 17.13 inches wide by 15.68 deep by 7.94 high, it needs a rack or a substantial shelf with ventilation. Buyers deciding between a receiver and a sound bar should be clear that this route requires separate speakers, speaker cable and setup time, and delivers correspondingly more in return. Speakers such as the Klipsch R-50M and the matching Klipsch R-52C center are typical partners.
Dirac Live Room Correction
The headline feature is Dirac Live, which Onkyo states is included out of the box. Room correction is the single largest improvement available to most home theater systems, because a room does more damage to sound than any component in the chain: bass builds up in corners, reflections smear detail, and the result differs at every seat. Dirac Live measures the room using a microphone at multiple positions and applies correction filters to compensate, addressing both frequency response and, distinctively for Dirac, impulse response.
Onkyo describes two ways to run it. A smartphone can be used with the included wired microphone, or the Dirac Live application for PC or MacOS can be used with a third party USB microphone, which the listing notes is not included. The second route is the more accurate and the one an enthusiast would choose. What the listing does not state is which Dirac license tier is supplied, since Dirac sells limited bandwidth and full bandwidth versions separately, and that difference matters. A buyer who specifically wants full bandwidth correction should confirm it with Onkyo before purchase.
Video, Zones and Speaker Integration
Three HDMI outputs are provided, with HDMI 2.1 supporting 8K and 4K transfer at 40 Gbps. That bandwidth figure is the one that matters for gaming consoles, and Onkyo positions it explicitly around next generation consoles. The three outputs allow a projector and a television to be connected simultaneously, and the receiver supports discrete Zone 2 HDMI switching, so a different source can play in a second room at the same time. Streaming services listed include Spotify, TIDAL, Deezer, TuneIn and Pandora.
Two certifications appear on the listing. THX Certification is described by Onkyo as the result of thousands of tests confirming that nothing is added to or removed from the source material across any combination of inputs and features. Works with Sonos Certified indicates the receiver integrates with a Sonos system for multi room use. There is also a Klipsch Optimize Mode, developed jointly by Onkyo and Klipsch, which applies the correct crossover values automatically once the specific Reference or Reference Premiere speaker model is selected for each channel. Dolby Atmos and DTS:X are both supported, with a Dolby Atmos Height Virtualizer available for systems without physical height speakers. A subwoofer such as the Dayton Audio SUB-1200 connects to one of the two subwoofer outputs.
Highlights
- Nine channels of amplification at a stated 120 watts per channel, with 11.2 channel processing.
- Pre outs supporting a 7.2.4 Dolby Atmos layout with external amplification.
- Dirac Live room correction included, with a wired measurement microphone supplied.
- Three HDMI outputs with HDMI 2.1 at 40 Gbps.
- Discrete Zone 2 HDMI switching for a second room.
- THX Certified and Works with Sonos Certified.
- Klipsch Optimize Mode for automatic crossover values with Klipsch Reference speakers.
- Dolby Atmos, DTS:X and a Height Virtualizer for systems without ceiling speakers.
Things To Consider
The 120 watts per channel figure needs qualifying. Receiver power ratings are normally measured with only two channels driven, and no AV receiver delivers its rated power to nine channels simultaneously; the power supply is not sized for it. The listing does not state the measurement conditions, the load impedance or the distortion figure, so the number cannot be compared directly against a competitor quoting different conditions. Anyone driving demanding speakers should treat it as an indication rather than a specification.
The Dirac license question is the other significant unknown. Dirac Live is sold in tiers, and the difference between a limited bandwidth license and a full bandwidth one is substantial in what the correction can address. The listing says only that Dirac Live is included out of the box, without naming the tier, and the more capable version is commonly an additional purchase on receivers of this type.
Practical considerations follow from the format. This is a large, heavy component that runs warm and needs ventilation above it. Setup is a genuine project involving speaker placement, cable runs, level matching, crossover settings and a measurement pass, and the result depends heavily on doing that carefully. Two AAA batteries are required for the remote. And a receiver is only as good as the speakers connected to it, so the budget split matters more than the receiver specification alone. Buyers who want most of the benefit with none of the work should compare the sound bars category, and those building a system should browse the receivers selection for alternatives.
Who It Suits
The TX-RZ50 suits someone building a dedicated home theater with physical height speakers, who values room correction over raw output, and who is comfortable with a multi evening setup process. Dirac Live, THX certification, three HDMI outputs and 7.2.4 pre outs together make it a component that a system can be built around and expanded within, rather than one that will need replacing after the next speaker purchase.
It is the wrong purchase for a living room where a single tidy box is the goal, for anyone unwilling to run speaker cable, and for a buyer who wants clear power specifications measured with all channels driven. Those buyers should look at packaged systems, or at a simpler receiver if the room will only ever hold five speakers.
